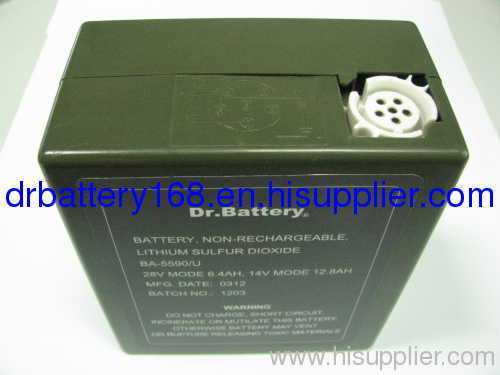

BA-5590/U,14V/28V,6.4Ah/12.8Ah,Li-SO2 battery pack, meets the Military Standards MIL-PRF-49471. BA-5590/U manufacturer from Hong Kong DR. BATTERY CO., LTD

BA-5590/U,14V/28V,6.4Ah/12.8Ah,Li-SO2 battery pack, meets the Military Standards MIL-PRF-49471.

Payment Terms:	T/T,L/C
Place of Origin:	China


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BA-5590/U

Production Capacity: 60000 sets per year

Delivery Date: 60 days

Battery Type: LiSO2

Nominal Capacity: 6.4Ah/12.8Ah

Light weight: Long operating life: 50~100...

Means of Transport: Ocean,Land,Air

Packing: 10 sets per box

Size: Others

Brand Name: Dr. Battery

Dual modes: 14V or 28V: High energy density

10-year shelf life: No voltage delay

Our BA-5590/U military battery meets the Military Standards MIL-PRF-49471. This is high performance non-rechargeable Lithium Sulfur Dioxide b

NSN: 6135-01-036-3495, 6135-01-438-9450, 6135-99-749-7054.

* Our BA-5590/U military battery meets the Military Standards MIL-PRF-49471.

* This is high performance non-rechargeable Lithium Sulfur Dioxide battery

* Durable high impact plastic housing and connector enclosure

* High reliability due to all welded Construction

* Unit contains safety vented cells and safety devices (fuse, TCO, diode)

* Gold plated contacts.

* 100% final testing

* Replacement for: BB-390A/U, BB-2590/U, BB-590/U, BB-490/U, BA-5390/U, and variants.
***********************************************************************************

*Item Specification

*Voltage: Typical: 14.0V or 28.0V, Final: 10.0V or 20.0V;

*Nominal Capacity: 14V Mode: 12.8Ah at 2A to 10V at 23℃, 28V Mode: 6.4Ah at 2A to 20V at 23℃;

*Max Discharge: 2.0 A continuous in 28V Mode, 4.0 A continuous in 14V Mode;

*Pulse Capability: Up to 2.5A continuous in 28V Mode, Up to 5.0A continuous in 14V Mode;

*Weight: About 1100 grams;

*Dimensions: 127*111*62mm;

*Operating Temp: -30℃ to +70℃;

*Storage Temp: -30℃ to +55℃;

*Exterior/Housing: Hard Plastic Case

*Connector: 6 pin polarized socked.
***********************************************************************************

*APPLICATIONS:

--- AN/PRC-119 SINCGARS

--- Javelin Medium Anti-Tank CLU

--- Approximately 50 other military applications
